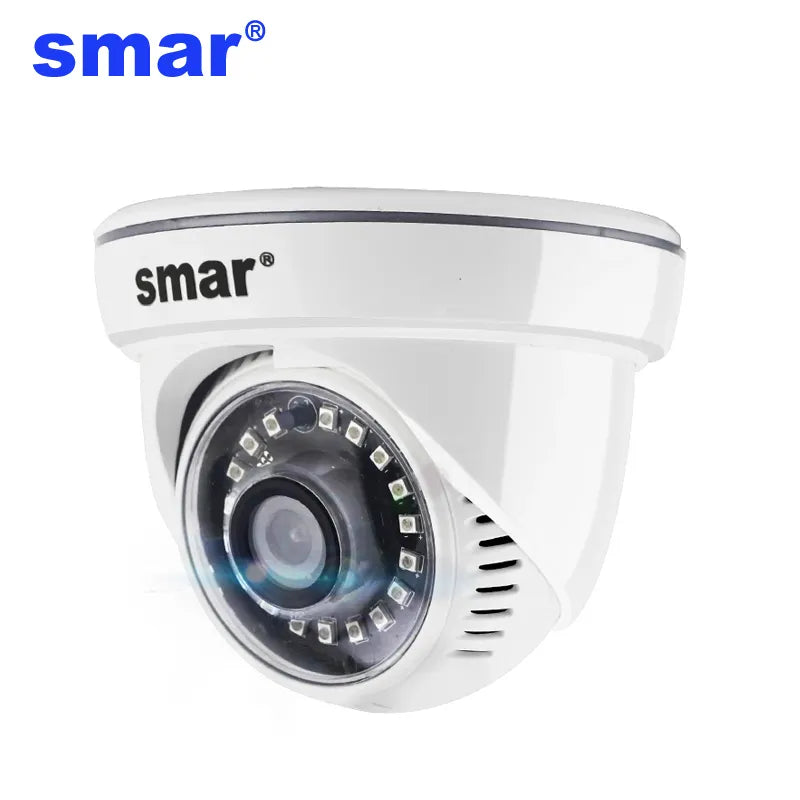

Indoor Home Security Camera With 18pcs Nano IR Led Night Vision Day & Night Surveillance Smar AHD camera 1080P 720P
Indoor Home Security Camera With 18pcs Nano IR Led Night Vision Day & Night Surveillance Smar AHD camera 1080P 720P
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: smar
Origin: Mainland China
Lens (mm): 3.6mm
Viewing Angle : 85°
Connectivity: Closed System/CCTV Wired
Focal Length: 3.6mm
Focus: 3.6mm
Technology: Infrared
Storage: None
Plug Type: None
Alarm Action: None
Sensor: CMOS
Supported Mobile Systems: None
Sensor Size: 1/2.8''
Model Number: S5-AX4CV100D/AX3CV200D
Style: Dome Camera
Supported Operating Systems: No
Horizontal Resolution: Other
Installation: Side
Installation: Normal
Installation: Ceiling
Audio Output: None
Certification: NONE
Sensor: 1/3" 2135 CMOS Sensor for 1080P
Lens: Standard 3.6mm (6mm Optional)
Max Transmission Distance: Common 75-3lines can be up to 500m

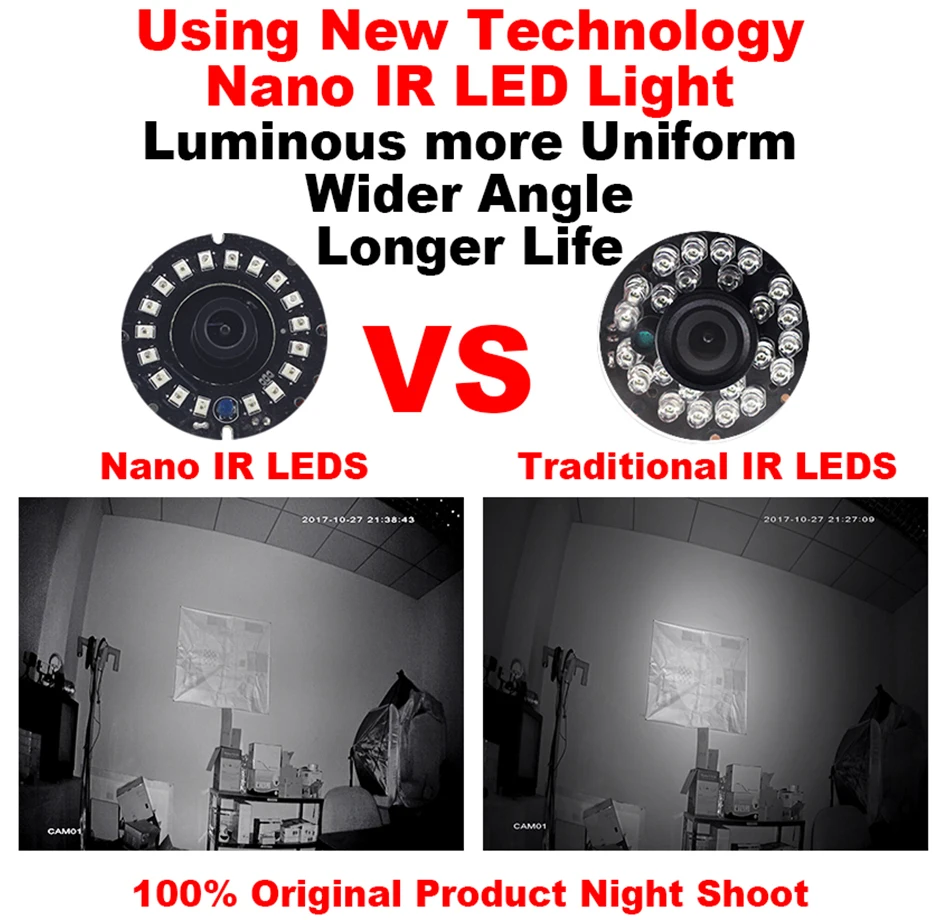

Infrared LED: 18PCS Nano IR LEDS With 10-15Meters IR Distance
IR Cut Filter: Yes, Day & Night
Shell Material: High Quality Plastic Shell
Work: Must be Work With AHD (AHDNH/AHDH)DVR
Power Adapter: DC12V 1A or 2A(Not include)
Type: HD AHD Camera

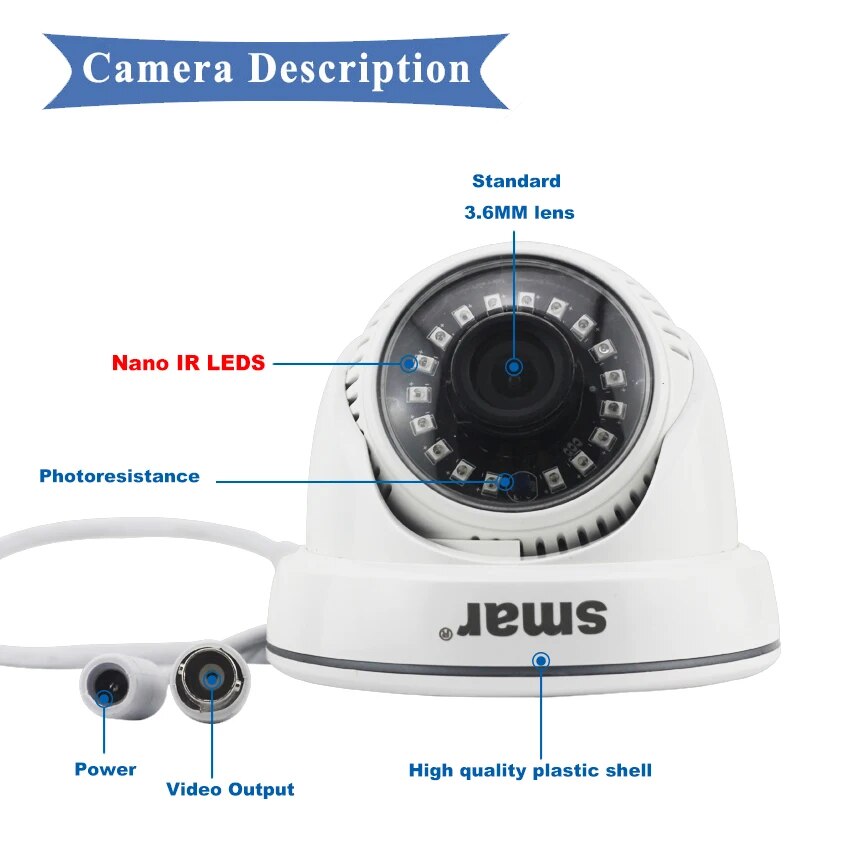

Smar CCTV 720P 1080P AHD Camera Indoor Door Home Security Camera With 18pcs Nano IR Led Night Vision Day & Night Surveillance
Camera | ||
Model |
S5-AX4CV100D |
S5-AX3CV200D |
Camera Pixel |
720P |
1080P |
Signal System |
PAL/NTSC |
|
Min Illumination |
Colour:0.1Lux/F1.2 B/W:0.01Lux/F1.2 IR-ON:0Lux |
|
S/N Ratio |
>58dB(AGC OFF) |
|
Video Output |
1CH AHD HD/CVBS Standard Singal Output(Switchable) |
|
Max Transmission Distance |
Over 500m via 75-3 coaxial cable(Don't use inferior cables) |
|

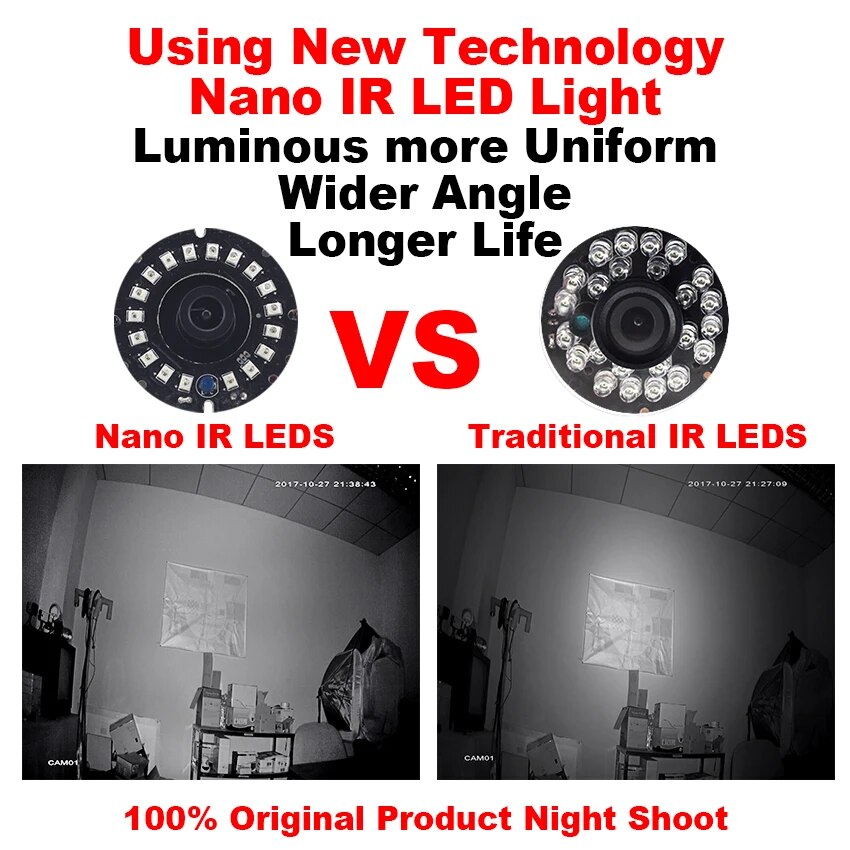

Infrared LED |
18pcs Nano IR LED 12mil |
|
IR Distance |
10-15 Meters (The difference of scene environment will lead to differences of IR distance) |
|
Day&Night |
IR cut filter with auto switch |
|
Lens |
Default 3.6mm (2.8mm,6mm,8mm optional) |
|
Image | ||
Max Resolution |
1280(H)*960(V) |
1920(H)*1080(V) |
Image Process |
AE, AWB, ABF, ABLC |
|
2DNR/3DNR |
Support(Auto) |
|
Interface | ||
Communication Interface |
1Vp-p Composite Output(75Ω/BNC） |
|
Power port |
1*DC12V(5.5mm/2.1mm) |
|
General | ||
Reliability |
Comprehensive lightning protection,in line with national and international standarda;7*24 hours 65 ℃ high temperature stable and reliable testing (camera board testing) |
|
Operating Conditi |
-10°~60°,humidity 90% or less (non-condensing) |
|
Power Supply |
DC12V ± 10% |
|
Power Consumption |
Max.6W |
|
Housing Material |
High quality plastic Material |
|
Weight |
0.2kg(about) |
|

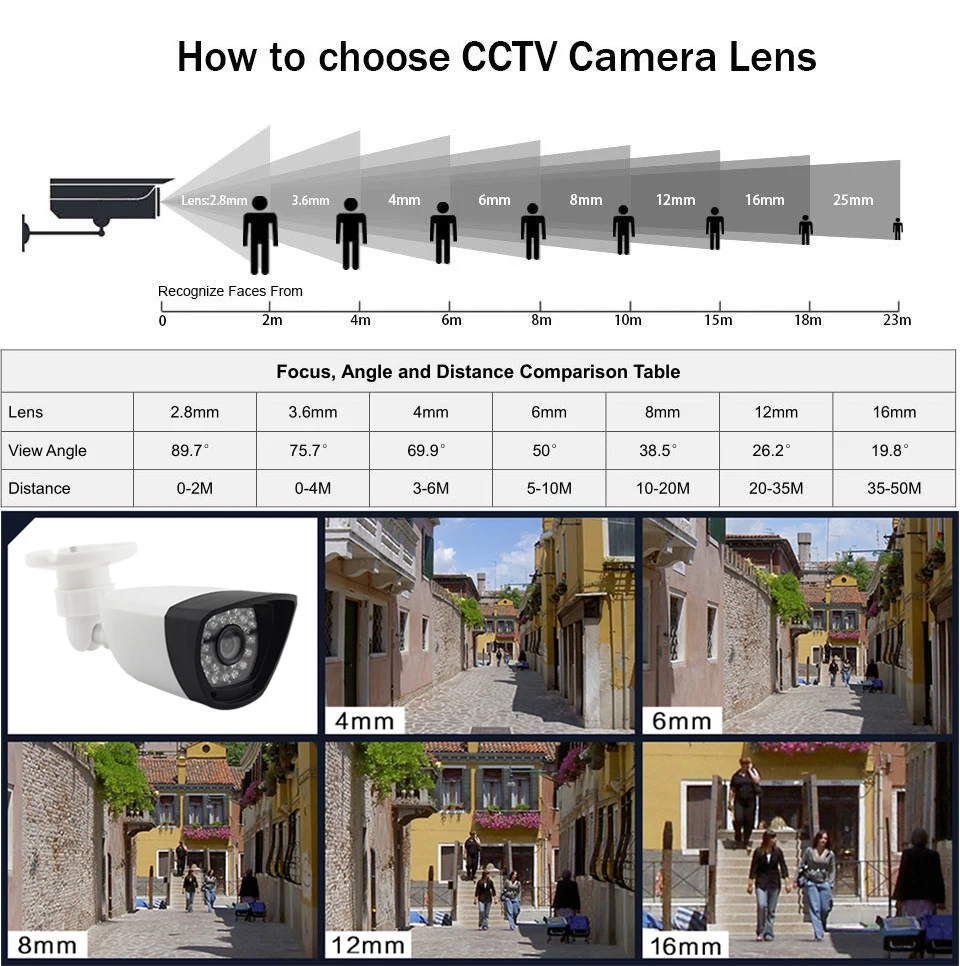

Note: This IP Camera Default HD 3.6MM Lens, If you need other Lens, Please leave a message to us on your order page. Below is the Lens Focus, Lens View Angel, Lens Distance Comparison Table. (for your reference)

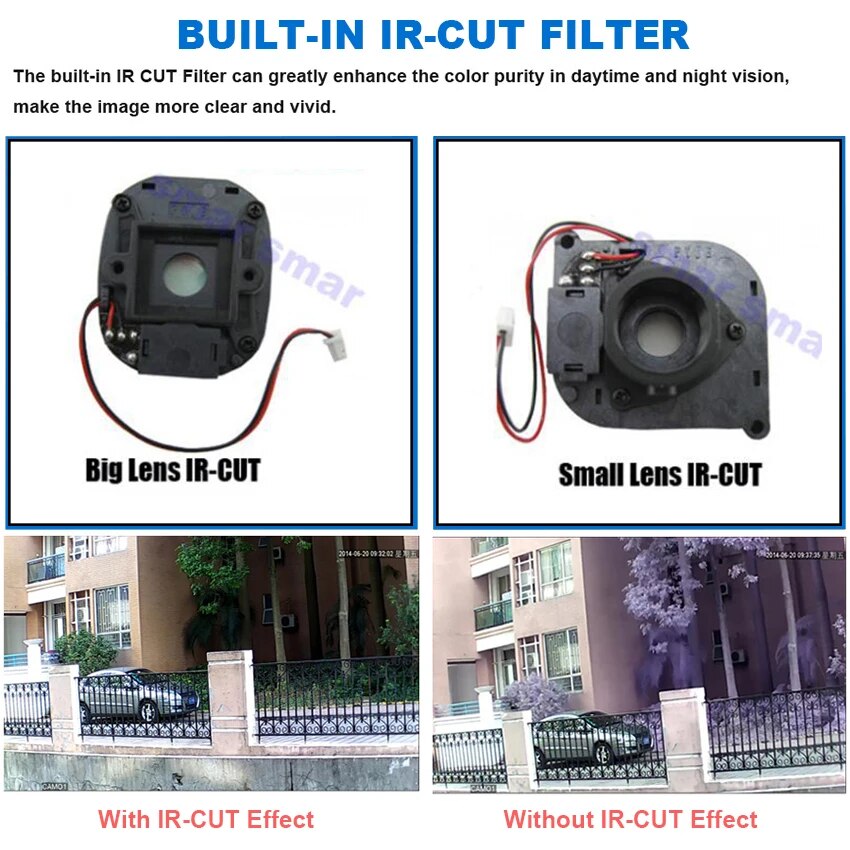

All of Our’sAHDCamera Built-in IR CUT Filter, What’sIR-Cut Filter?
The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.
What is AHD?
AHD is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).
In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.
AHD is a novel technique pioneered These products and applications enable seamless and friendly transition of video surveillance systems from analog to digital, be it all-new digital installations or upgrades from existing analog installations.
AHD Cameras Image Quality
High image quality at the resolution of 720P/960P
The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.

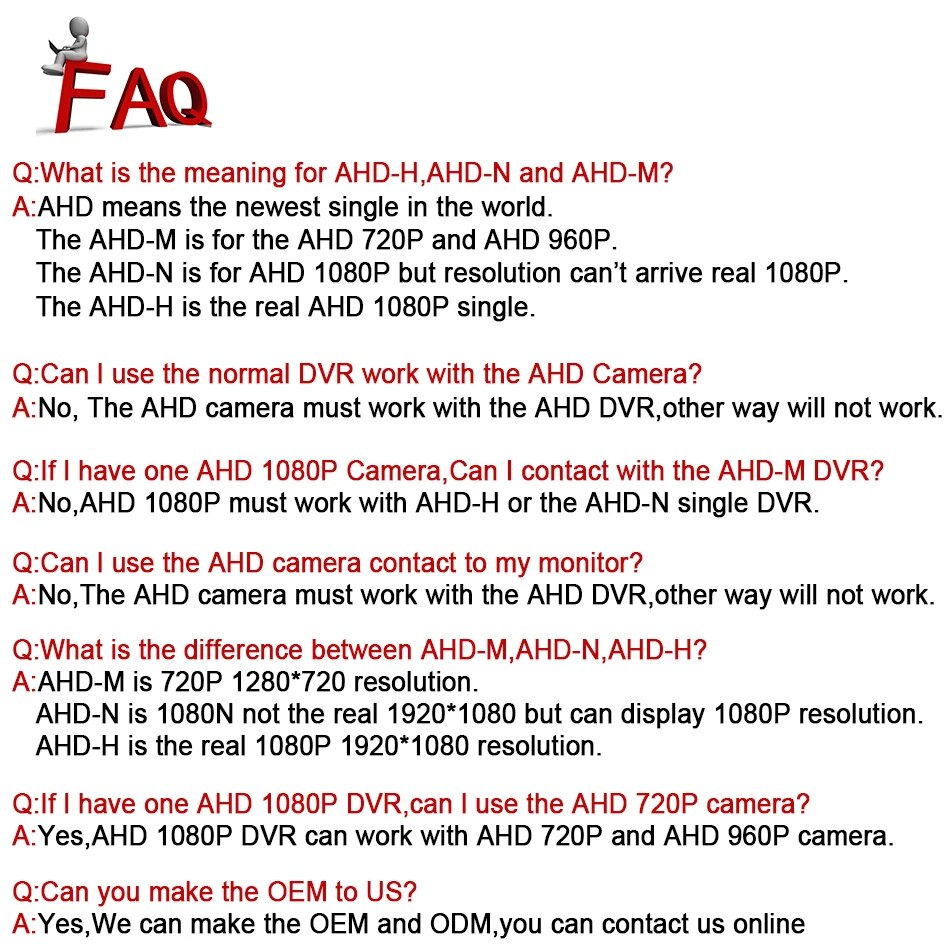

FAQ :
Q: What's the meaning for AHD-H,AHD-N and AHD-M?
A: AHD means the newest single in the world.
The AHD-M is for the AHD 720P and AHD 960P.
The AHD-N is for the AHD1080P, but resolution can't arrive real 1080P.
The AHD-H is the real AHD 1080P single.
Q: What's the difference between AHD-M, AHD-N, AHD-H?
A:AHD-M is 720P 1280*720P Resolution.
AHD-N is 1080N, not the real 1920*1080,But can display 1080 resolution.
AHD-H is the real 1080P 1920*1080 resolution.
Q: Can I use the normal DVR work with the AHD Camera?
A:No, The AHD Camera must work with the AHD DVR, other way will not work.
Q: Can I use the AHD Camera contact to my monitor?
A: No, The AHD Camera must work with the AHD DVR, other way will not work.

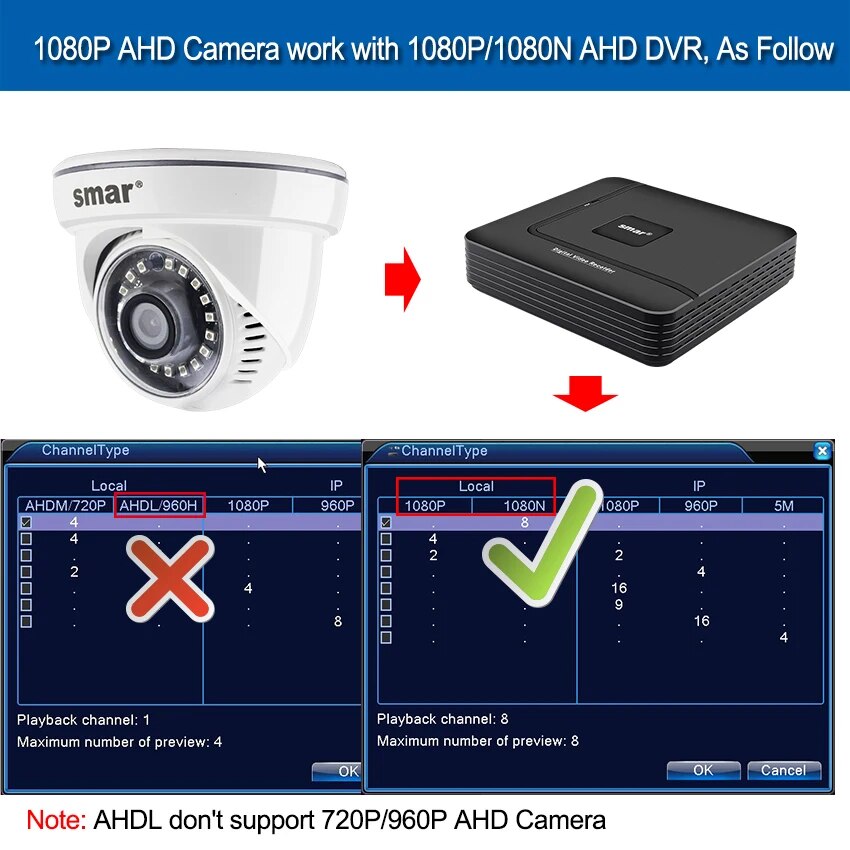

Q: If I have one AHD 1080P Camera, Can I contact with the AHD-M DVR?
A: No, AHD 1080P must work with AHD-H or AHD-N single DVR.
Q: If I have one AHD 1080P DVR, Can I use the AHD 720P Camera?
A: YES, AHD 1080P DVR can work with AHD 720P and AHD 960P Camera.
Q: Can you make the OME to us?
A:Yes, We can make the OEM and ODM, you can contact us online.
